Canton Catalogue
High-Precision Production Machinery

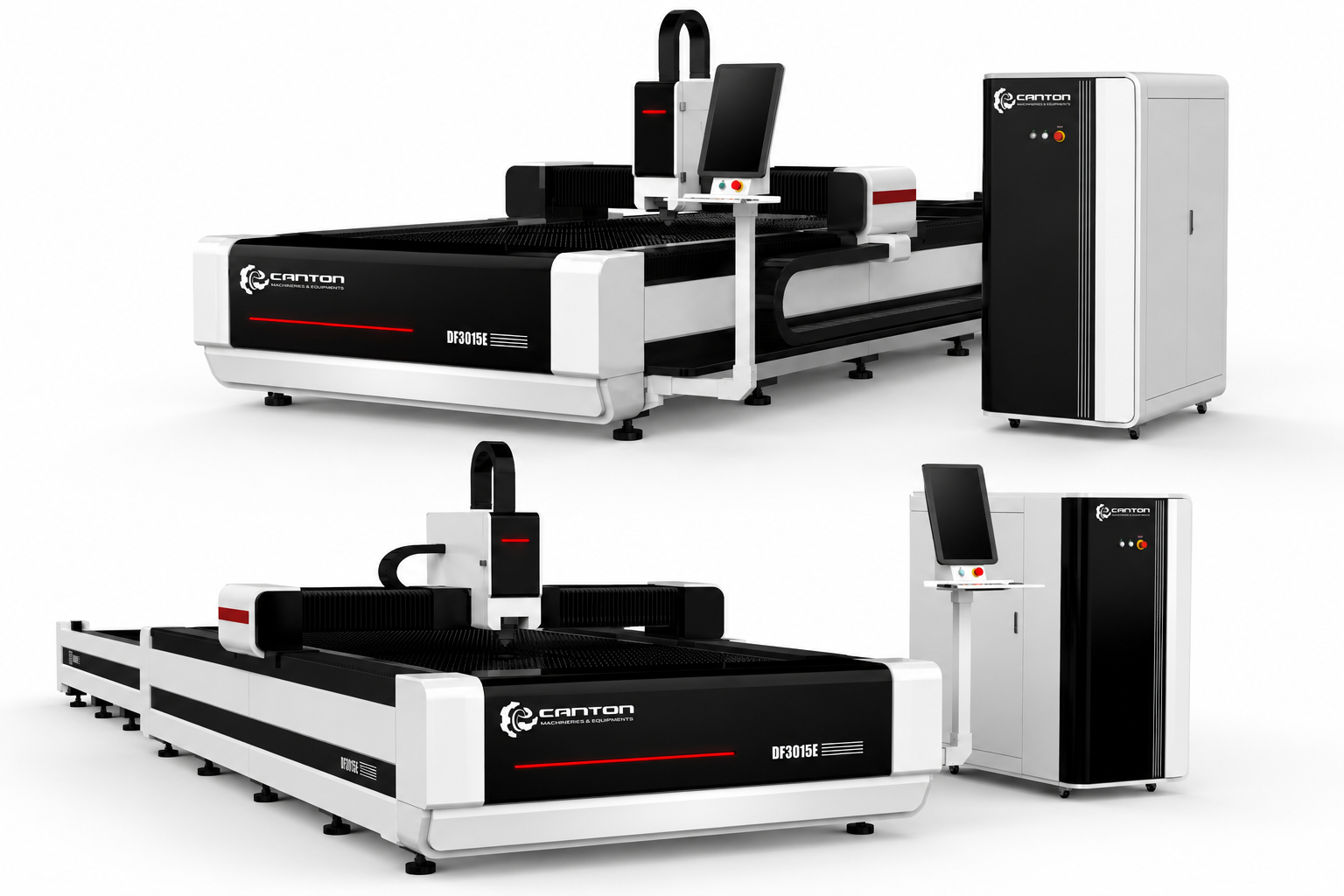

DF3015E Fiber Laser
- Machine Model: DF3015E
- Laser Power: 1500W - 6000W
- Laser Wavelength: 1080nm
- Linear Guide System: PMI Taiwan (Opt. THK Japan)
- Max Idle Speed: 40mm/s
- Cooling Chiller: Industrial S&A Water Chiller
- Fiber Module Lifespan: > 100,000 Hours
- Storage Temp: -10°C to 45°C
- Working Humidity: < 70% (No condensation)
- Working Table: Sawtooth
- Laser Cutting Head: Raytools
- Working Voltage: 380V, 50Hz / 60Hz
- Transmission System: Ball Screw
- Gross Weight: 4000KG

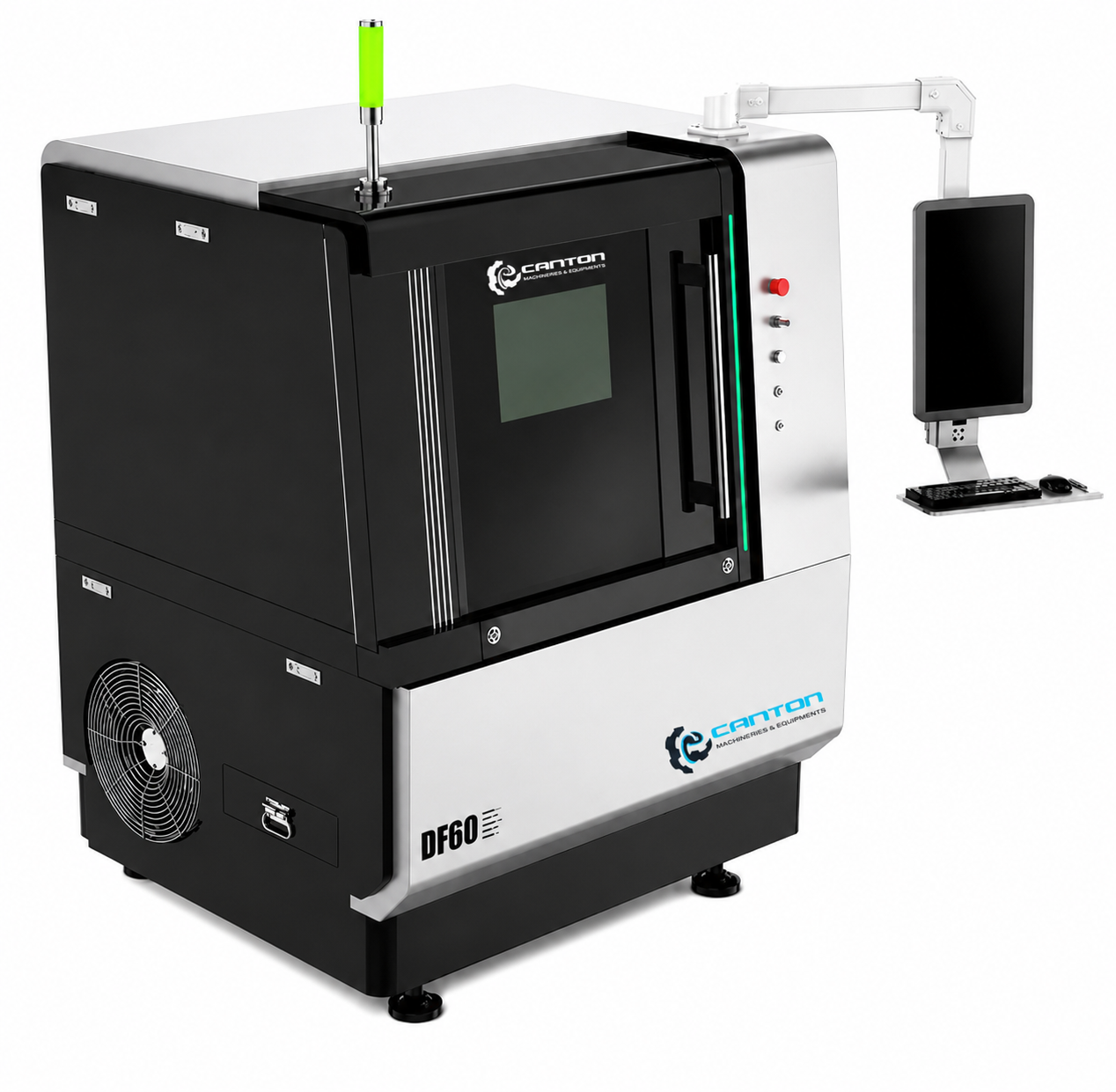

DF 60
- Machine Model: DF60
- Laser Power: 1000W, 1500W, 2000W, 3000W
- Laser Wavelength: 1080nm
- Linear Guide System: PMI Made in Taiwan
- Maximum Idle Running Speed: 40mm/s
- Cooling Chiller: Industrial Water Chiller - S&A Water Chiller
- Working Life of Fiber Module: More than 100,000 Hours
- Pneumatical Fixed Clamp: Including
- Humidity Range of Working Environment: < 70% (No condensation)
- Working Table: Sawtooth
- Fiber Laser Cutting Head: Raytools
- Working Voltage: 220/380V, 50Hz / 60Hz
- Transmission System: Ball Screw
- Gross Weight: 1500KG

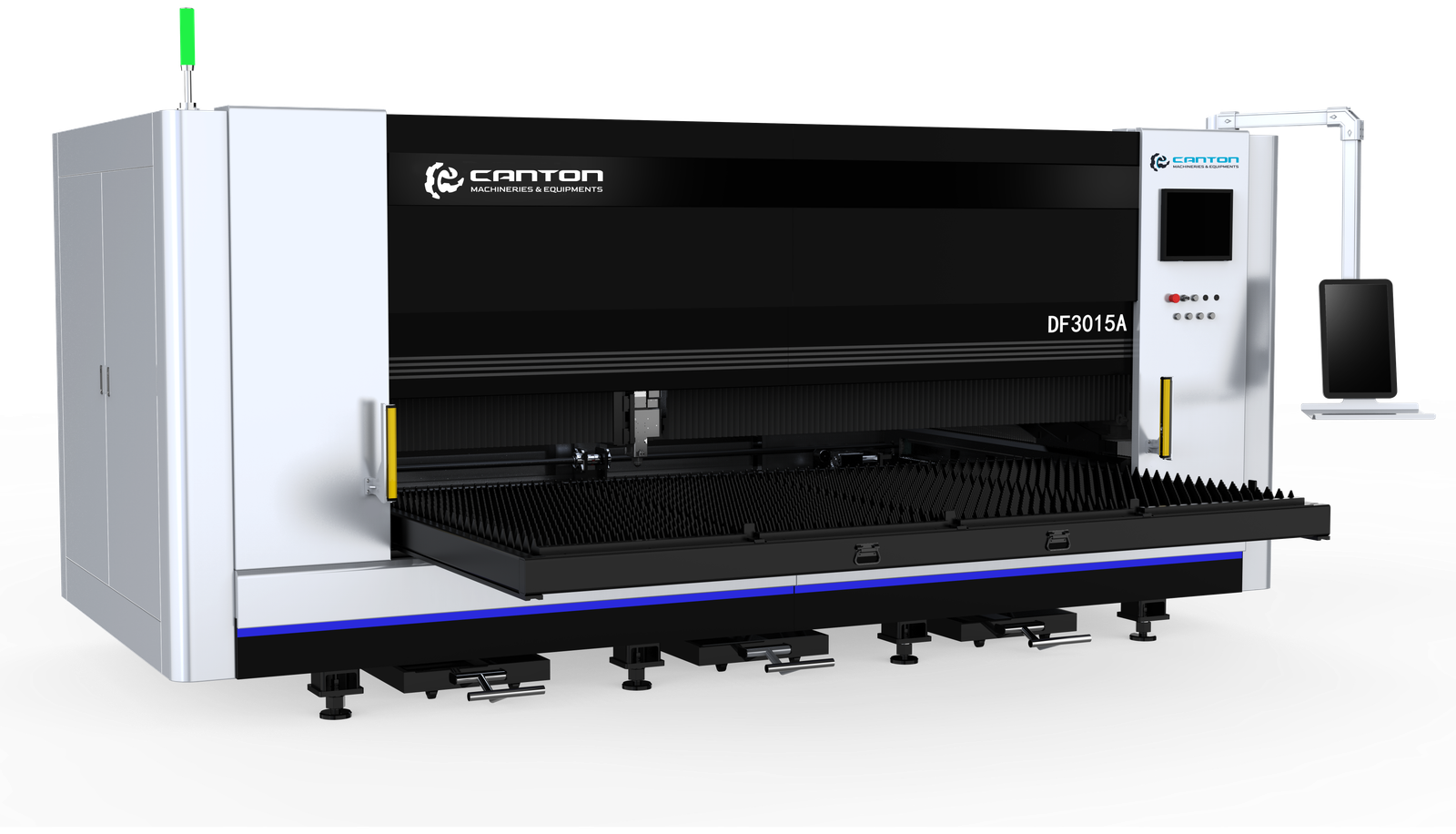

DF 3015A
- Model: 3000W, 6000W, 12000W
- Control System: CYPCUT2000E, 4000E, 6000E
- Laser Cutting Head: BM110, BLT421S, BLT442
- Laser Source: RAYCUS
- Water Chiller: CWFL-3000W, 6000W, 12000W
- Servo Motor Brand: FUJI / Yaskawa
- Voltage: Three Phase 380V / 50Hz Options
- Work Size: 3000 × 1500mm
- Motor Reducer: Yaskawa Servo Motor
- Gear and Rack: Taiwan YYC
- Weight: 4500KG
- Dimension: (Calculate inches) 4.95 × 2.25 × 2.23m (194.88 × 88.30 × 88.90in)

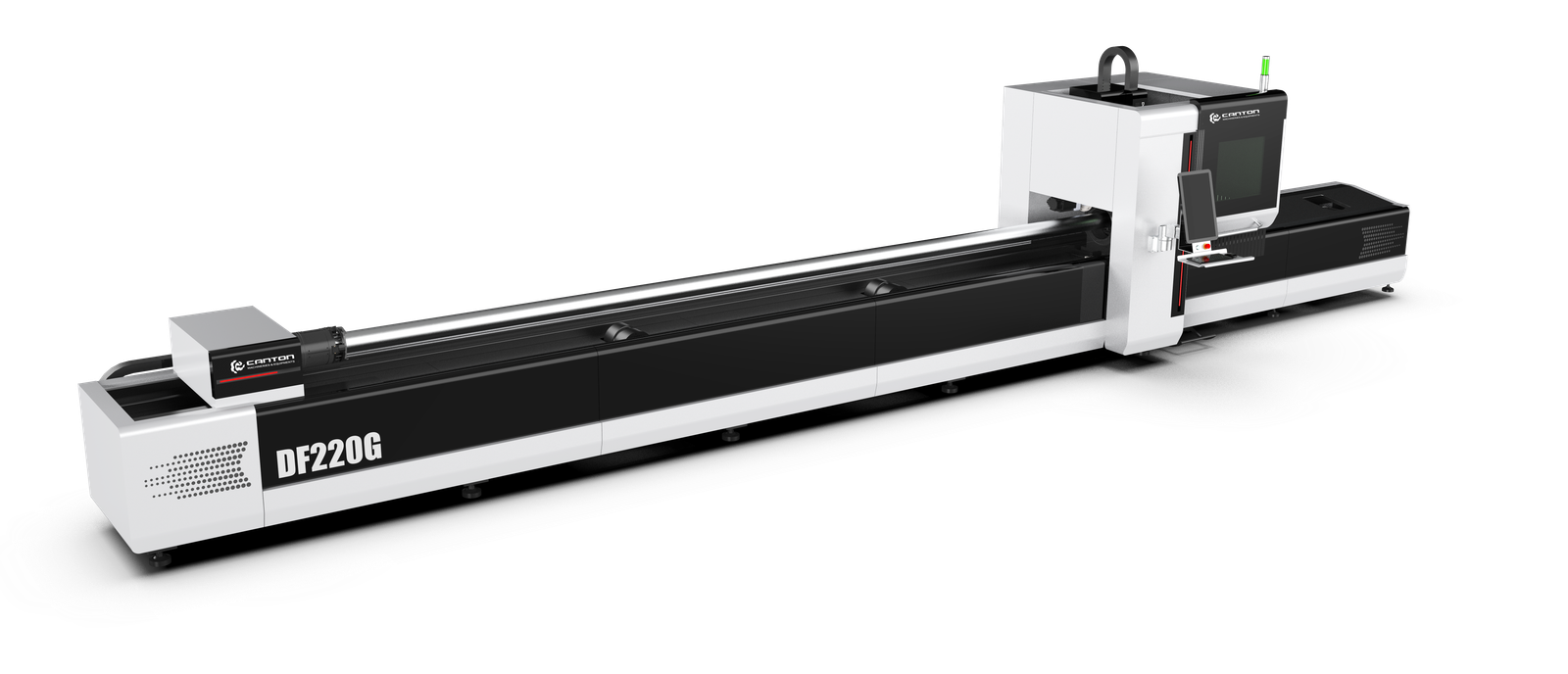

DF 220G
- Machine Model: DF220G
- Laser Power: 1000W, 1500W, 2000W, 3000W
- Laser Source: RAYCUS / MAX
- Chuck Diameter: 120mm / 160mm / 220mm
- Repeat Positioning Accuracy: ±0.02mm
- Rated Voltage and Frequency: 380V, 50Hz / 60Hz
- Laser Wavelength: 1080nm

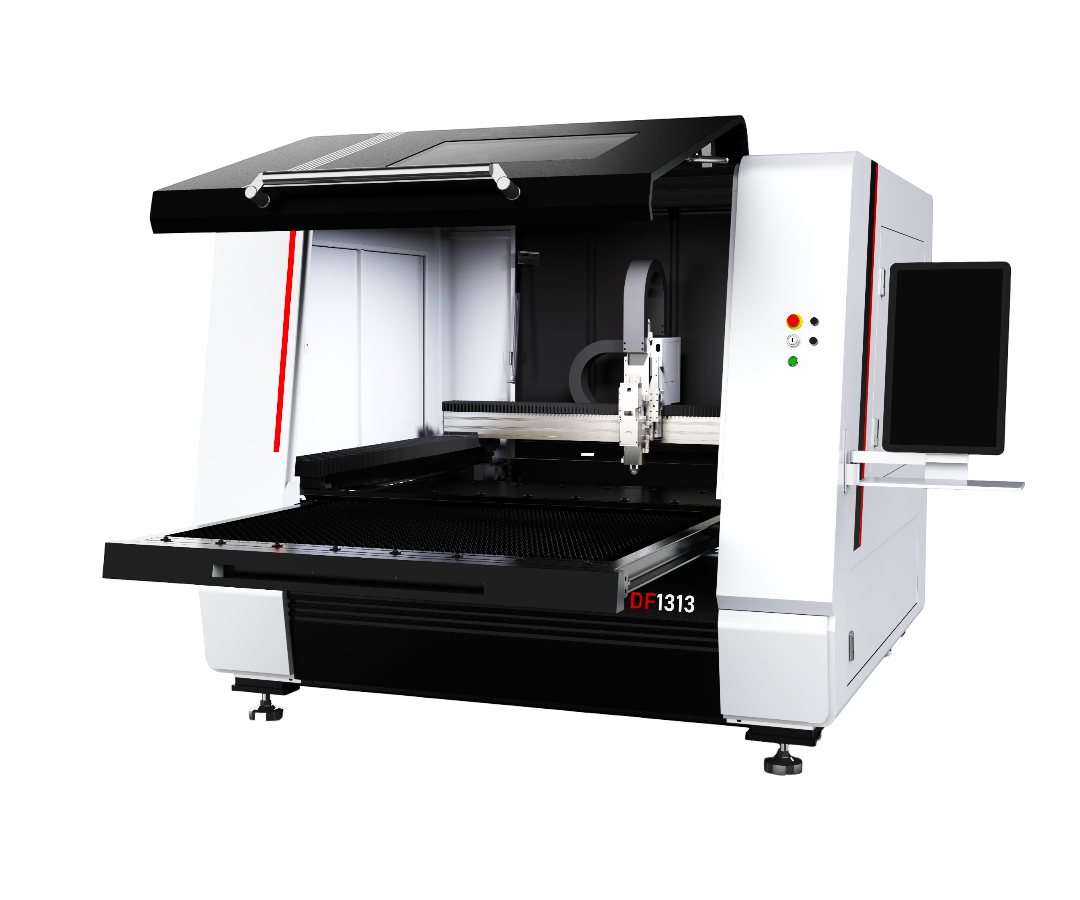

DF 1313
- Machine Model: DF1313
- Laser Power: 1500W, 2000W, 3000W
- Laser Source: RAYCUS / MAX
- Working Area: 1300 × 1300mm
- Repeat Positioning Accuracy: ±0.03mm
- Rated Voltage and Frequency: 220-380V, 50Hz / 60Hz
- Laser Wavelength: 1080nm
- Gross Weight: 1800KG

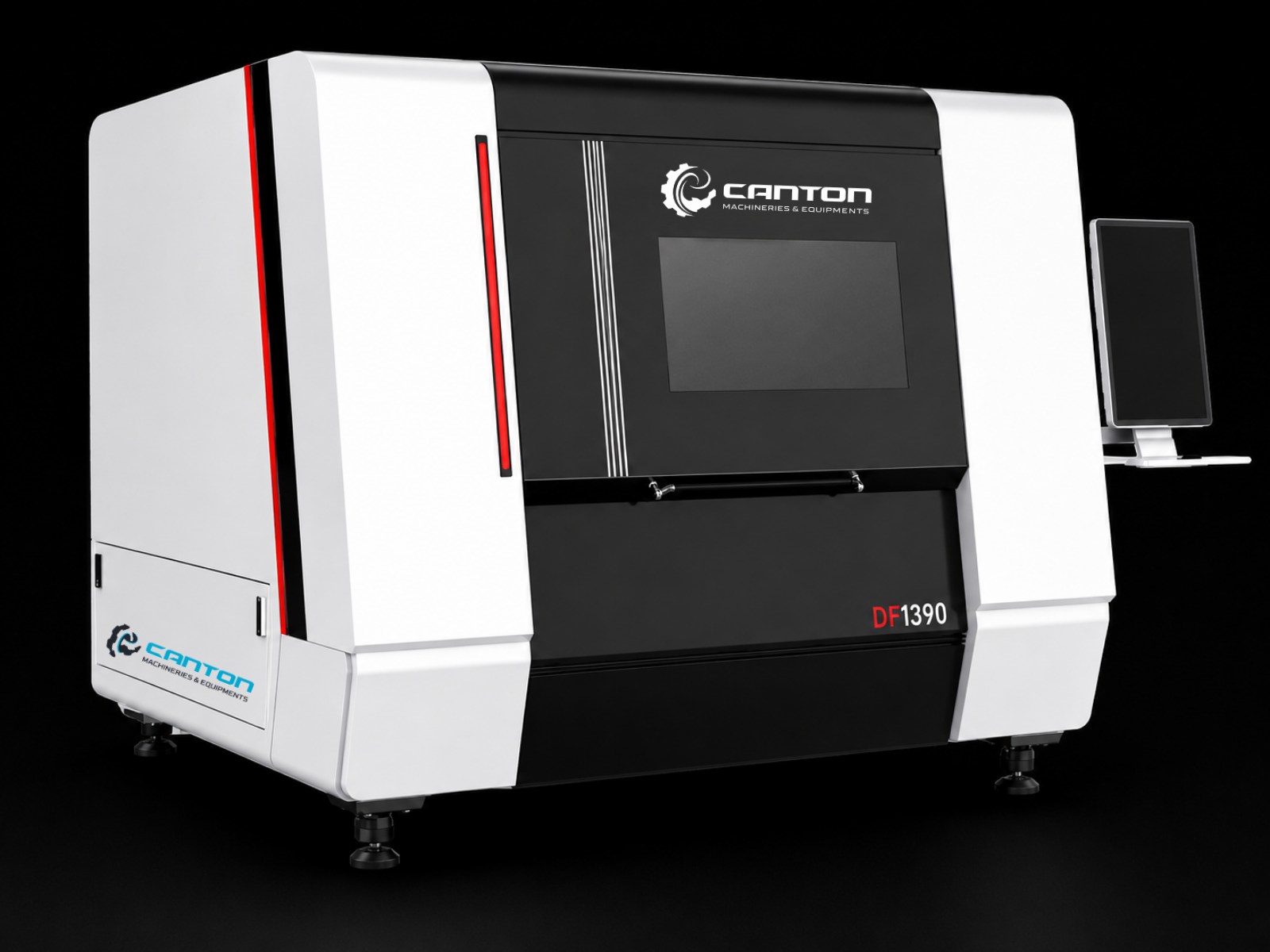

DF 1390
- Machine Model: DF1390
- Laser Power: 1000W, 1500W, 2000W
- Laser Source: RAYCUS / IPG
- Working Area: 1300mm × 900mm
- Repeat Positioning Accuracy: ±0.02mm
- Rated Voltage and Frequency: 380V, 50Hz / 60Hz, 60A
- Laser Wavelength: 1064nm
- Gross Weight: 1500KG

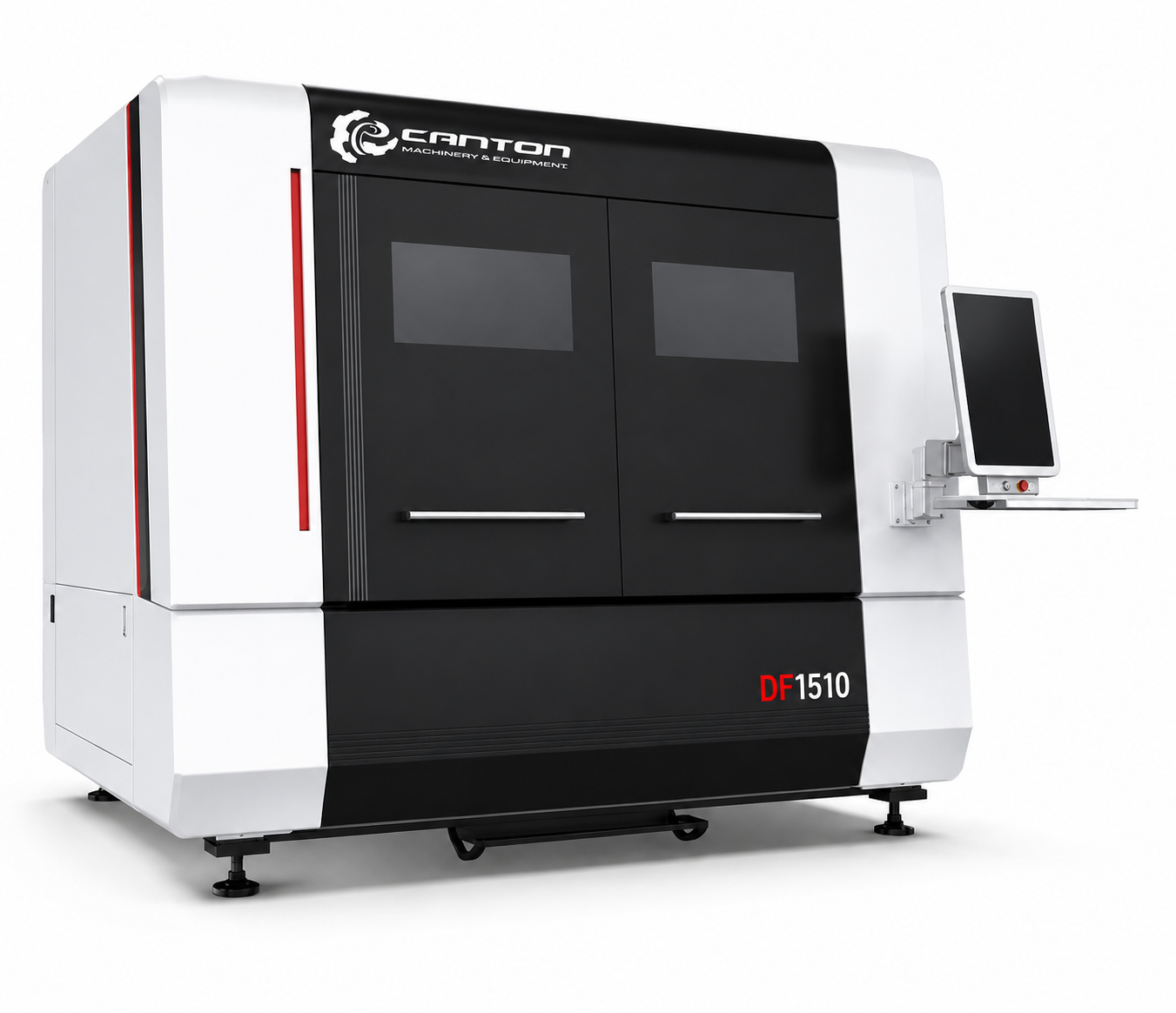

DF 1510
- Machine Model: DF1510
- Laser Power: 1000W, 1500W, 2000W, 3000W
- Laser Source: RAYCUS / IPG
- Working Area: 3000mm × 1500mm
- Repeat Positioning Accuracy: ±0.03mm
- Rated Voltage and Frequency: 380V, 50Hz / 60Hz, 60A
- Laser Wavelength: 1064nm
- Gross Weight: 2000KG

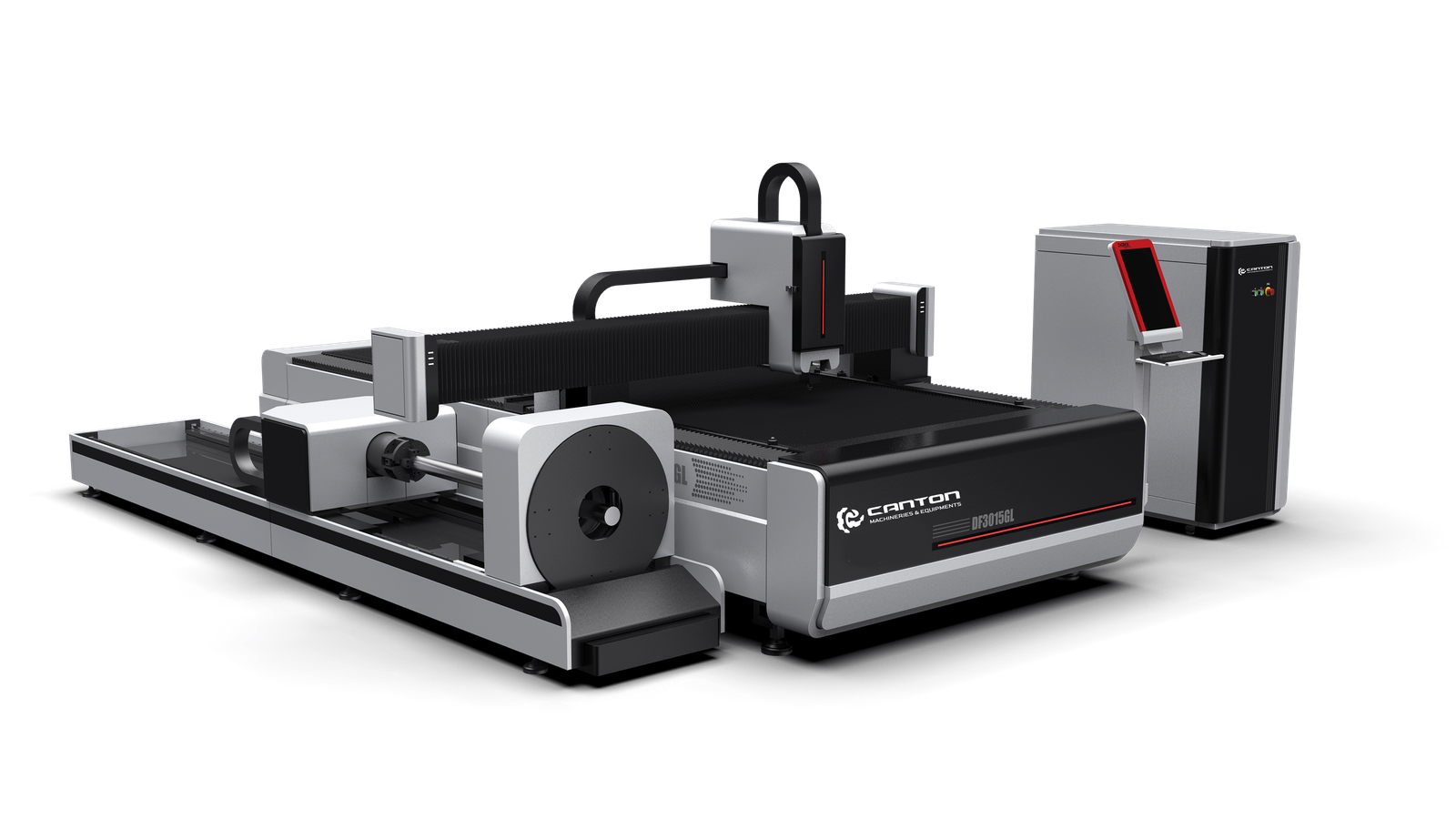

GL Series
- Machine Model: DF3015GL, DF4015GL, DF4515GL, DF6015GL
- Laser Power: 1000W, 1500W, 2000W, 3000W, 4000W
- Laser Source: RAYCUS / IPG
- Working Area: DF3015: 3000mm × 1500mm (Decided according to the model)
- Repeat Positioning Accuracy: ±0.02mm
- Rated Voltage and Frequency: 380V, 50Hz / 60Hz, 60A
- Laser Wavelength: 1064nm
- Gross Weight: 5000KG

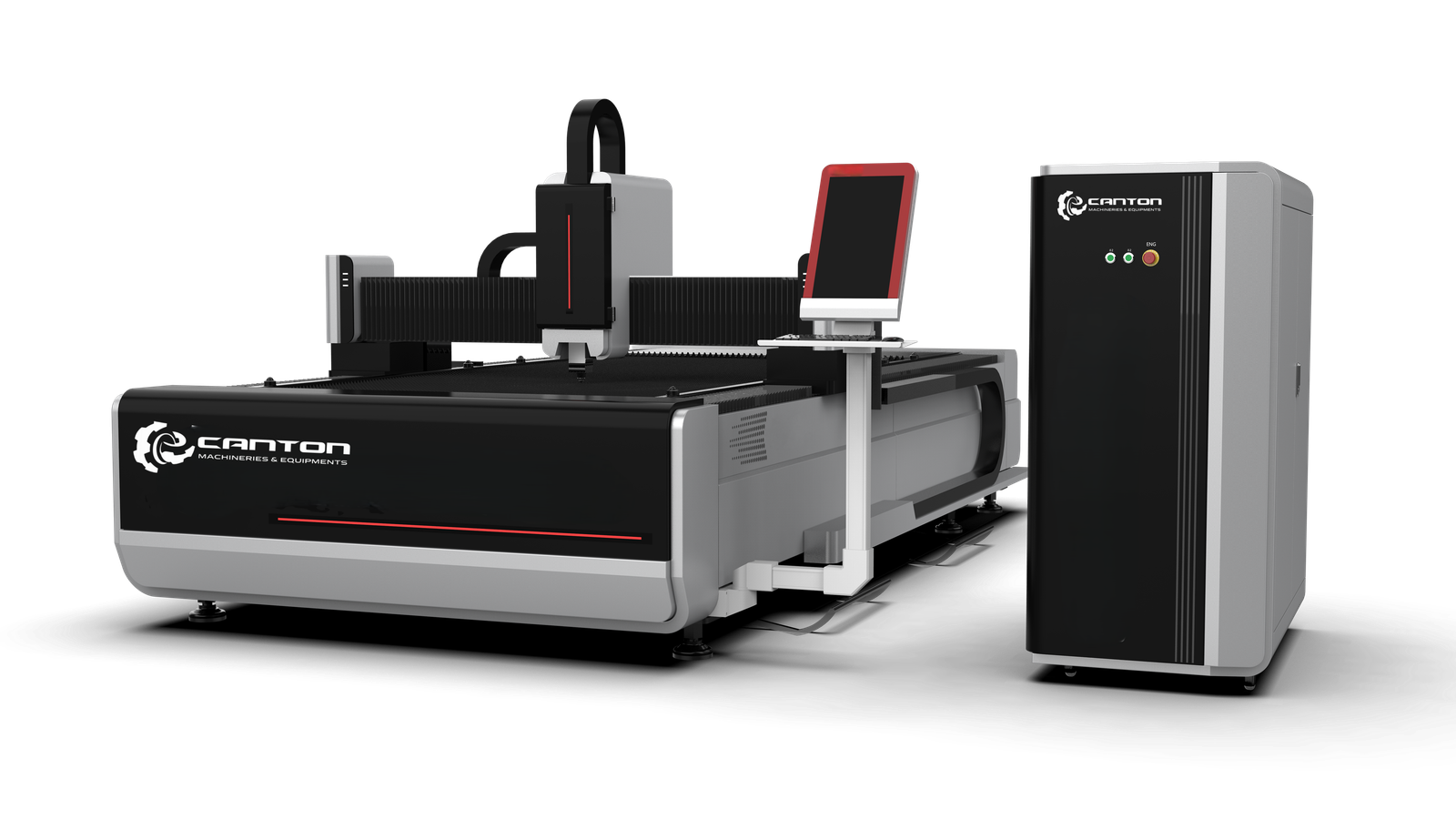

L Series
- Machine Model: DF3015L, DF4015L, DF4515L, DF6015L
- Laser Power: 1000W, 1500W, 2000W, 3000W, 4000W
- Laser Source: RAYCUS / IPG
- Working Area: DF3015: 3000mm × 1500mm (Decided according to the model)
- Repeat Positioning Accuracy: ±0.02mm
- Rated Voltage and Frequency: 380V, 50Hz / 60Hz, 60A
- Laser Wavelength: 1064nm
- Gross Weight: 2400KG
L Series
- Machine Model: DF3015L, DF4015L, DF4515L, DF6015L
- Laser Power: 1000W, 1500W, 2000W, 3000W, 4000W
- Laser Source: RAYCUS / IPG
- Working Area: DF3015: 3000mm × 1500mm (Decided according to the model)
- Repeat Positioning Accuracy: ±0.02mm
- Rated Voltage and Frequency: 380V, 50Hz / 60Hz, 60A
- Laser Wavelength: 1064nm
- Gross Weight: 2400KG

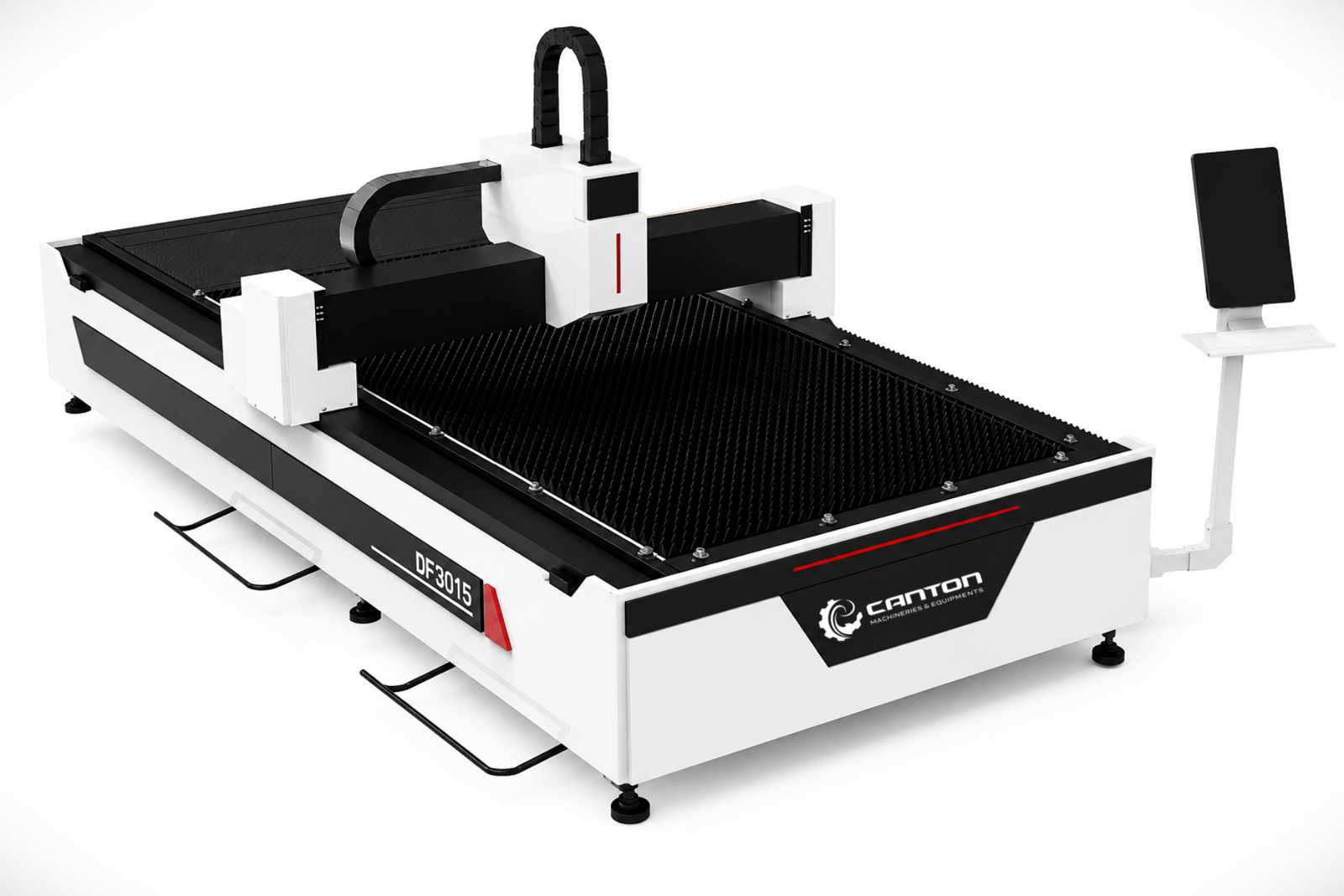

LE Series
- Machine Model DF3015LE
- Laser Power 1000W, 1500W, 2000W, 3000W
- Laser Source RAYCUS / IPG
- Working Area DF3015: 3000mm × 1500mm
- Repeat Positioning Accuracy ±0.02mm
- Rated Voltage and Frequency 380V, 50Hz / 60Hz, 60A
- Laser Wavelength 1064nm
- Gross Weight 1800KG

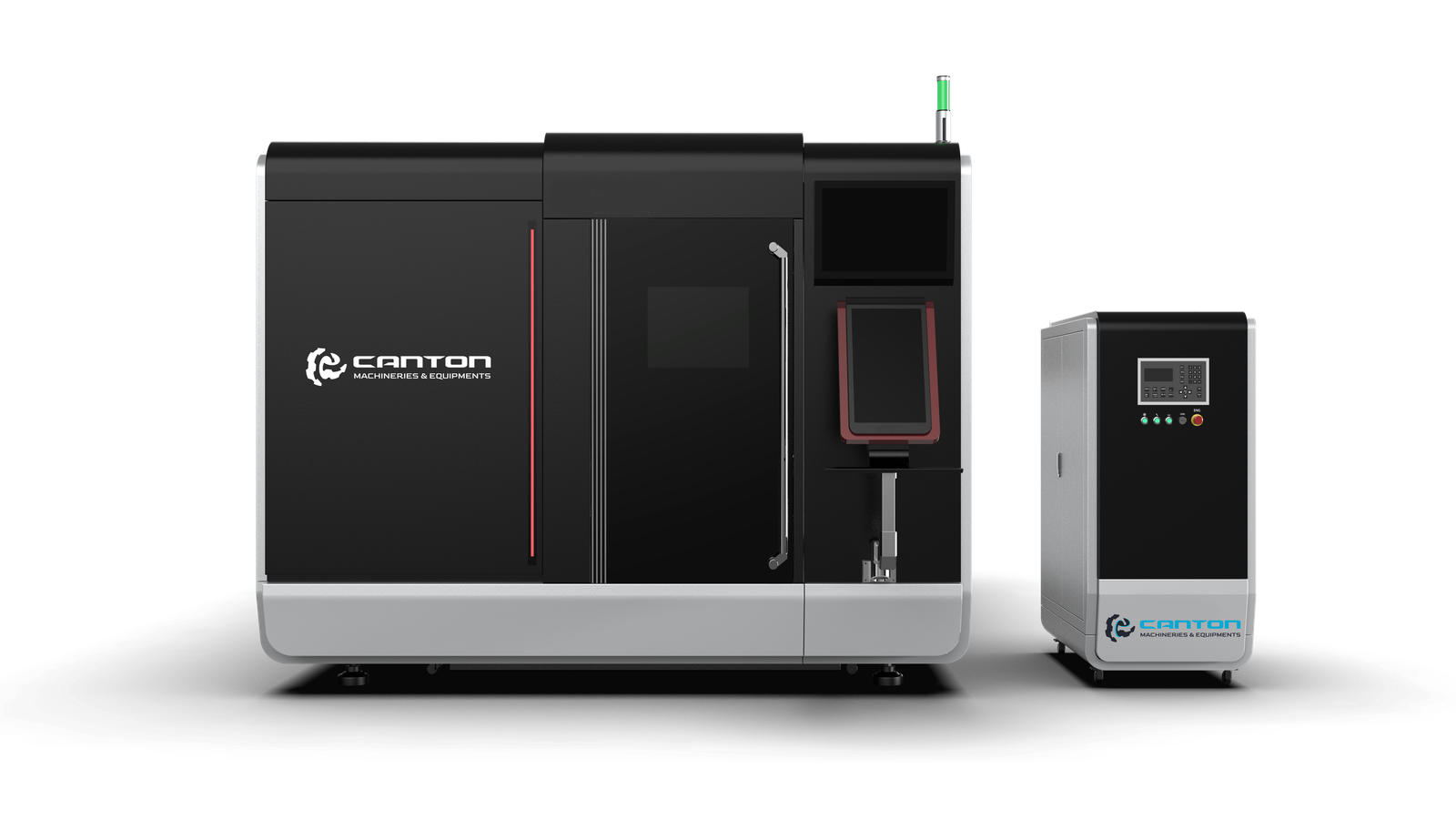

S Series
- Machine Model DF3015S, DF4020S, DF6025S
- Laser Power 2000W, 3000W, 4000W, 6000W, 8000W, 12000W
- Laser Source RAYCUS / IPG
- Working Area DF3015: 3000mm × 1500mm (Decided according to model)
- Repeat Positioning Accuracy ±0.02mm
- Rated Voltage and Frequency 380V, 50Hz / 60Hz, 60A
- Laser Wavelength 1064nm
- Gross Weight 6000KG

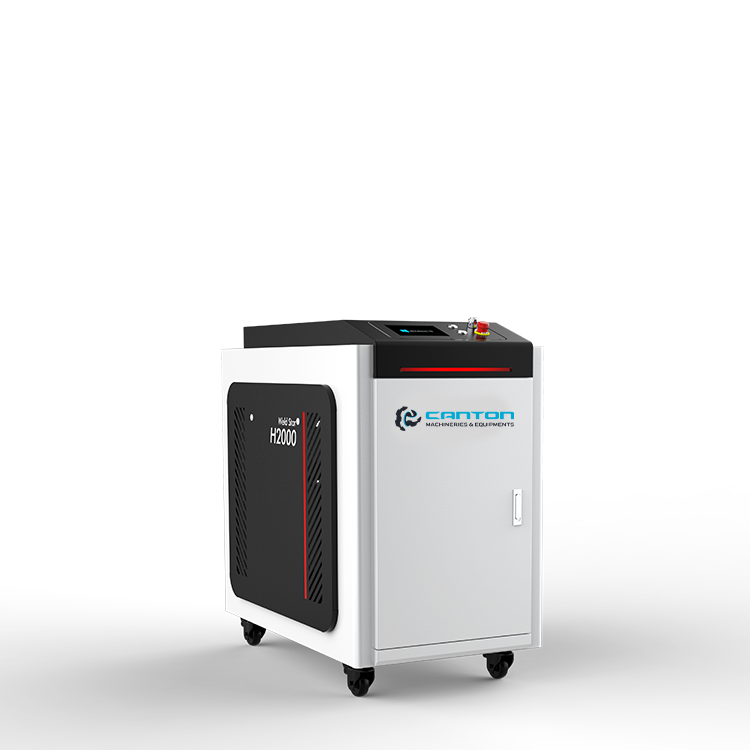

Laser Welding Machine
- Machine Model DRK6000W, DRK1500W, DRK2000W, DRK3000W
- Laser Power 1500W / 2000W / 3000W / 6000W
- Laser Wavelength 1080nm
- Operation Mode Continuous / Modulate
- Welding Speed Range 0 - 120 mm/s
- Cooling Chiller Industrial Water Chiller - S&A Water Chiller
- Working Environment Temperature 10°C - 40°C
- Storage Temperature -10°C - 60°C
- Humidity Range <70% No Condensation
- Welding Thickness Recommendations 0.5 - 3 mm
- Welding Gap Requirements <0.5 mm
- Working Voltage 220/380 ±10%V AC, 50/60Hz
- Net Weight 120 KG
- Gross Weight 150 KG

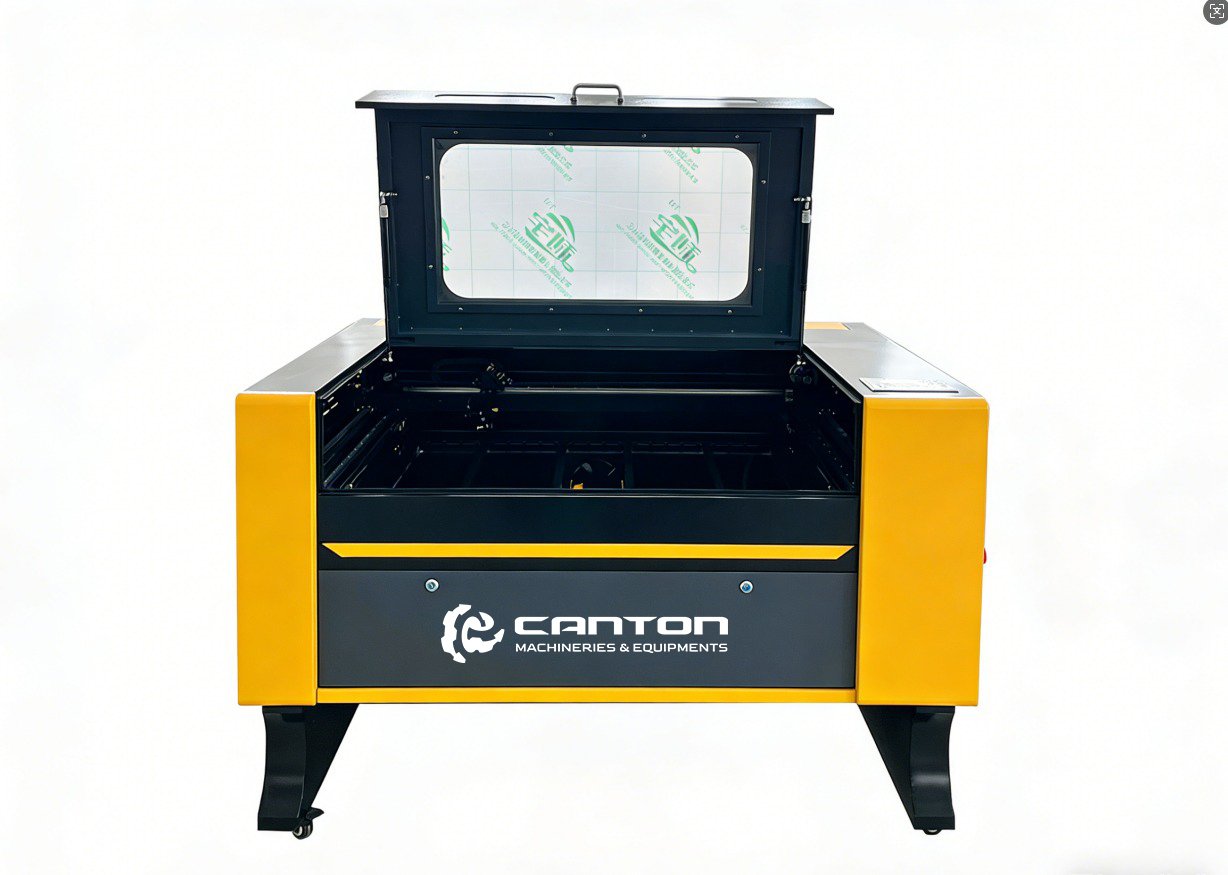

CO2 Engraving and Cutting Machine
- Laser Power: 50W - 180W (Optional)
- Laser Type: Hermetic CO2 Glass Tube
- Power Supply: AC220V ±10% 50Hz / AC110V ±10% 60Hz
- Working Area: 900mm × 600mm
- Max Moving Speed: 0 - 1000 mm/s
- Up & Down Worktable: Electric Up-Down Worktable
- Worktable Type: Blade and Honeycomb Table
- Location Precision: <0.01 mm
- Min Shaping Character: Character: 3×3 mm, Letter: 2×2 mm
- Operating Temperature: 50°C - 350°C
- Resolution Ratio: ≤4500 dpi
- Control Configuration: DSP
- Data Transfer Interface: USB (Offline)
- System Environment: Windows 2000 / XP / Vista / Windows 7
- Cooling Way: Water Cooling and Protection System
- Graphic Format Supported: BMP, GIF, JPEG, PCX, TGA, TIFF, PLT, CDT, CLK, DEX, CXL, CMX, AI, JPG, WMF, SVGZ, PCT, FMW, GEM
- Compatible Software: CorelDraw, AutoCAD
- Cutting Thickness: 0-20 mm (Depends on Materials)
- Color Separation: Up to 256 Colors
- Sloping & Engraving: Yes, Slope Can Be Designed Directionally
- Water Protection: Yes
- Package Dimension: 1700 × 1220 × 1220 mm (Wooden Box)
- Gross Weight: 350KG

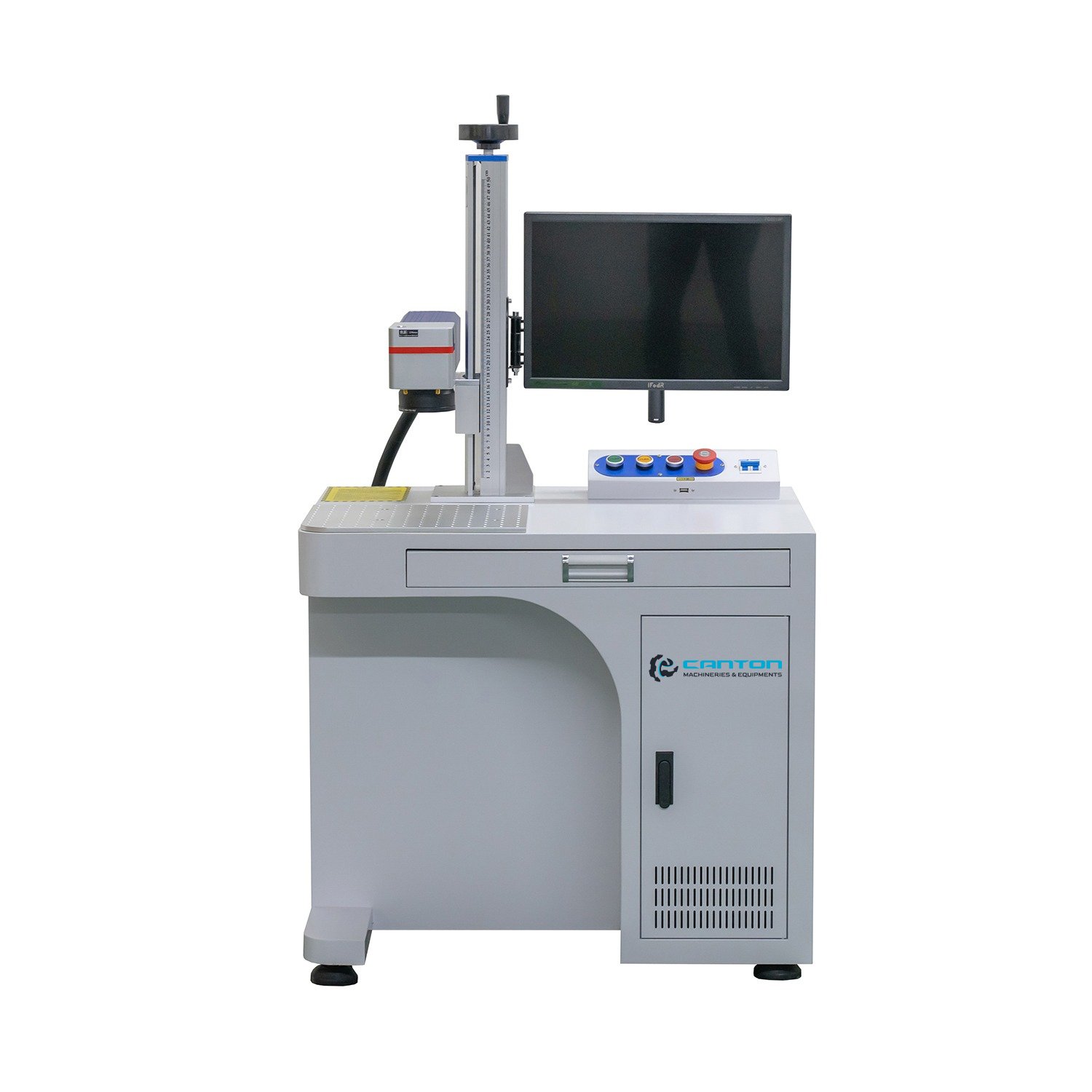

Table Laser Marking Machine
- Laser Type: Fiber Laser
- Laser Wavelength: 1064nm
- Output Power: ≥20W | ≥30W | ≥50W | ≥60W | ≥70W | ≥100W
- Marking Speed: <7000mm/s
- Marking Depth: 0.01-0.3mm / 0.01-0.5mm (Visual Materials)
- Repetition Rate: 20-80kHz
- Pulse Width: Fixed Pulse Width
- Master Control System: Ezcad2
- Cooling System: Air Cooling
- Minimum Line Width: 0.01mm
- Repeatability Accuracy: 0.001mm
- Marking Range: 110×110 / 150×150 / 175×175 / 200×200 / 300×300mm (Optional)
- Targeting Method: Red Light Preview
- Number of Lines of Engraved Characters: Any Line Within Marking Range
- Software: Ezcad2, Windows 7/10/11 Compatible, LightBurn Support
- Variable Marking: Serial Numbers, Date, Time & Automatic Code Skipping
- Layers: Supports 256 Layers With Different Processing Parameters
- Supported Fonts: TrueType Fonts, JSF Single-Line Fonts, SHX Fonts, DMF Dot Matrix Fonts
- Support Type: QR Codes, Barcodes
- File Format: BMP, JPG, PNG, AI, DXF, PLT & Other Image Formats
- Power Supply: 220V/50Hz, 110V/60Hz Optional
- Power Consumption: 800W
- Machine Size: 800 × 600 × 1420mm
- Machine Weight: 70KG - 73KG
- Package Size: 880 × 720 × 1160mm
- Package Weight: 100KG - 103KG
- Temperature Environment: 0°C - 45°C
- Humidity: ≤95% Non-Condensing
